TURKISH BUGLES PRODUCTION LINE LPX250

264 views

Turkish Bugles Production Line LPX250,  produces  5 shapes of Chips Capacity 250 kg / hr

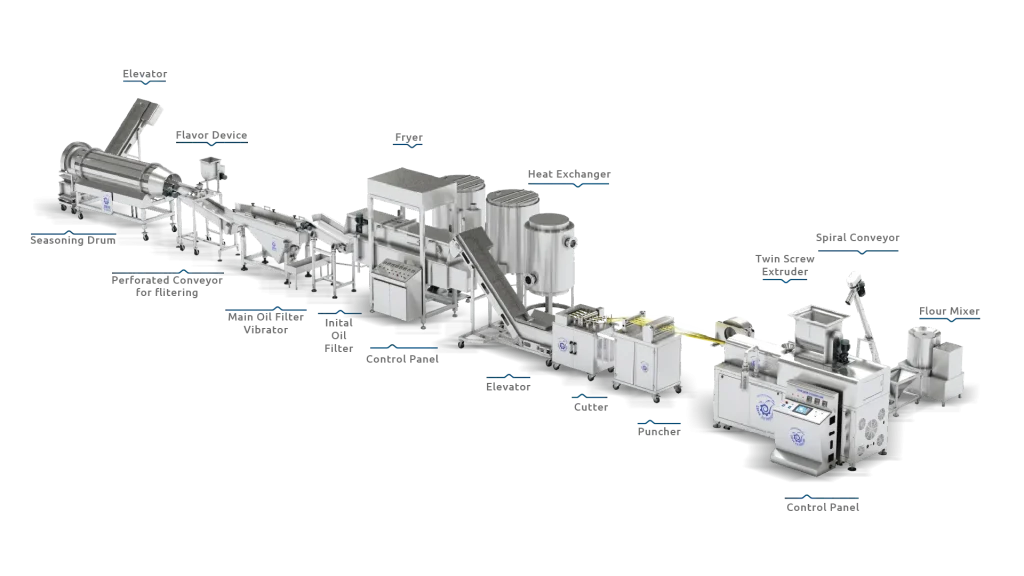

LPX 250 Bugles Production Line  consists of the following parts:

1 – Flour Mixer
2 – Flour conveyor
3 – Twin Screw Extruder
4- Cutter machine
5- Conveyor line of the product to the fryer
6 – Fryer and accessories
7- Initial oil filter vibrator
8. Main oil filter vibrator
9 – Perforated Conveyor for filtering
10- Flavoring device
11 – Flavoring Cylinder
12 – Receipt Product Conveyor

Flour Mixer :

Cylinder mixer made of / stainless steel 304 /
Mixer capacity / 300 / kg
Its function is mixing wheat flour + corn flour + water + other additives
Easy to clean
Capacity of / 4 / kW / 50-60 / Hz

Flour conveyor  :

A Helix conveyor made of / stainless steel 304 /
Height of / 300 / cm
Capacity of / 1.1 / kW  /50 – 60 / Hz

Twin Screw Extruder  :

The extruder is responsible for forming pellet
Capacity  /190 / to  /200 / kg per hour
The main engine is / 22  /kW
Provide with  Stainless steel Screw feeder made of  /304 stainless steel /,  /750 /W engine
The main Screw diameter 70 mm is made of the finest metals (no decomposition required for cleaning)
Total capacity is / 23 / kW  /50 – 60 / Hz

Cutter machine :

Pellet paste cutter made of  / 304 stainless steel /
Cutting blades are made of thermally treated steel
Can be supplied with customized forms templates
Easy to adjust and calibrate
Easy to clean and clean
Equipped with an inverter for speed control
Power  /400 / W  / 50 – 60 / Hz

Conveyor line of the product to the fryer :

Made of  /304 stainless steel /
The belt is made of food poly-amide
Designed in a water-resistant manner for washing and cleaning
Powered by a Turkish-made engine with a capacity of 750 watts + an Italian speed box VARVEL brand
Power /400 / W  / 50 – 60 / Hz

Fryer and accessories :

The frying pan is made of food chrome stainless steel 304  Capacity /144 /  kg ====  / 170 / liters of oil
Designed in a well-engineered way to easily pass the pellet beads inside, taking into consideration the characteristics of each type
The conveyor belt for the Chips is made of stainless steel food with a dedicated spindle to immerse the beads and pass it in oil smoothly
The frying pan is insulated from all directions with a thick layer of European-made glass fiber to save temperature and save energy
The main engine of the Fryer is Turkish industry brand GAMAK  / 750 /W capacity  and an Italian speed tray VARVEL
The fryer is equipped with an electric lever to control the cleaning of the frying pan at the end of work. The engine has a capacity of  / 1500 /W
The fryer is equipped with a ventilation vent to evaporate the steam from the oil directly connected to the main ventilation network in the factory
The fryer is equipped with an electric floater English model to control the oil compensation process in an adaptive manner
The fryer is equipped with a pump for recycling and filtration of oil. Production capacity  /20/ cubic meters per hour Turkish industry German concession Resistance to high temperatures
The fryer is equipped with automatic cleaning mechanism for the pipes of the connections of frozen oil
The fryer is equipped with quick discharge holes to facilitate the washing and cleaning process
The fryer is equipped with / 24 / Spanish air heaters, distributed in groups and isolated from oil in closed tubes made of stainless steel.
The temperature of the oil is controlled by a set-up automatic calibration timer made by AUTONICS
The oven is equipped with an additional temperature watch for the protection and safety made by AUTONICS
The fryer is equipped with two double-jacketed oil-recovery tanks / 350 / liters isolated from all directions with a layer of glass fiber to provide energy
Each tank is equipped with a Turkish heating heater capacity of  / 6 / kW with a special control clock to heat oil and compensate for the frying pan automatically
Function of the first tank feed the pan with the new oil and the function of the second tank storage of old oil inside it during the cleaning process
The frying pan is equipped with advanced security and safety devices with multi-function alarm whistle
The fryer is equipped with a three-language color control control panel with a sophisticated, responsive PLC and performance
The screen is equipped with a simulation system for the operation of parts of the line during operation
The screen is equipped with a counter for production and work hours
A programmed saving mechanism for the operation of electric heaters in the fryer
All electrical parts of the contactor, control switches and command of the French company SCHNEIDER
All motor drive and speed control devices from Korean LS or Schneider
The control panel is equipped with all the necessary protection from the dangers of high and low voltage
The main panel is equipped with an excellent ventilation mechanism with special filtration for hot areas

Initial oil filter vibrator:

• It is a perforated conveyor with a vibrator device to clean the Chips of oil as a preliminary filter
• Total length / 125 /cm Width  /60 / cm
• Made entirely of  /304 stainless steel /
• Powered by an Italian manufacturer
• Equipped with a liquid oil tank with automatic return mechanism to the pan
• Total capacity  /0.75 / kW / 380 / V  / 50 / Hz

Main oil filter vibrator:

The total length is  /250 / cm
English model with a width of  /50 / cm
Made of pure / stainless steel 304 /
It is equipped with Two Italian-made  Vibrator engine
Equipped with oil purifier tank with automatic return mechanism to the pan
Total capacity  /0.75 / kW / 380 / V  / 50 / Hz

Perforated Conveyor for filtering:

Made of  /304 stainless steel /
Length  / 225 / cm
Width / 35 /cm
Turkish half-horsepower engine with / 0.37 / kW electric power and Italian speed tray VARVEL
Equipped with a collection tank for refined oil
Can be equipped with hot air fans for final oil drying (on request)
Total capacity / 0.37 / kW / 380 / V  / 50 / Hz

Flavoring Device:

Tank made of / stainless steel 304 /
With a flavor mixing machine, the engine is half a horse with / 0.37 / kW electric power with an Italian speed tray VARVEL
Horizontal screwdriver for feeding flavored powder to vibrator, Dutch model half-horse engine with Italian speed tray VARVEL
The feeding screw is equipped with a Korean LS inverter to control the amount of powder flowing to the spray vibrator accurately
A modern measuring and calibrating machine equipped with an electronic circuit
The powder spraying platform is made of / 304 stainless steel / designed to distribute the powder in an excellent way to the chips
Equipped with adjustable air filter mechanism and calibration
Total capacity / 1.37 / kW / 380 / V / 50 / Hz

Flavoring Cylinder:

Cylinder made of food chrome / 304 stainless steel /
Length of / 3.40 / meters, diameter of / 70 / cm
Profile base made of food chrome / 304 stainless steel /
Highly designed to rotate and move the beads of the chips inside to distribute a homogeneous flavor powder on the beads Chips
1 horsepower / 0.75 / kW with Italian speed tray VARVEL
Equipped with Korean LS inverter
With a semi-complete cover on the side of the Chips exit, in order to avoid fluffing the flavored powder from inside the flavored cylinder
Total capacity / 0.75 / kW / 380 / V / 50 / Hz

Receipt Product Conveyor :

Made of / 304 stainless steel /
The belt is made of food poly-amide
Designed in a water-resistant manner for washing and cleaning
Powered by a Turkish-made engine with a capacity of / 750 / watts + an Italian speed tray VARVEL

Specifications
Model LPX250
Production Type Corn Bugles
Production Capacity 200 kg/h
Stages 11 stages
Motors 15 motors
Power Requirement 70 k.w
Electricity 380v, 50 Hz

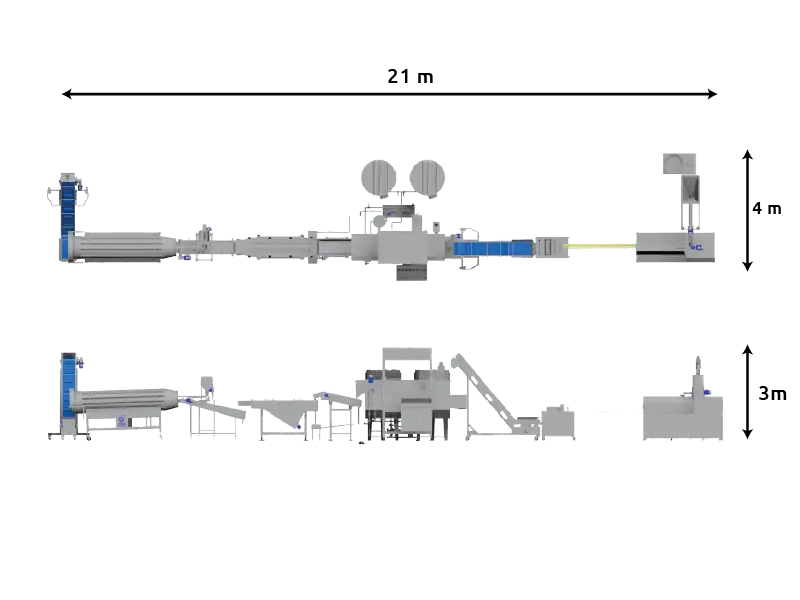

Dimensions
